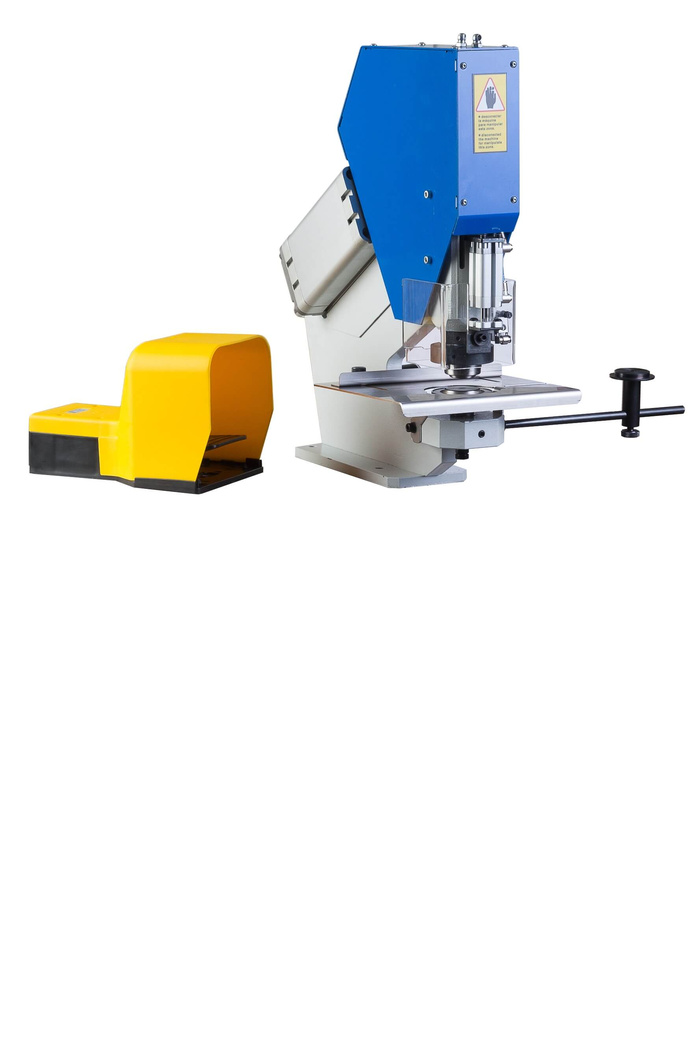

The Jopevi J-25 is a heavy-duty, portable, manual-feed pneumatic grommet machine that punches a hole in your material and sets the grommet and washer in a single action. This model has a cut-and-set capacity of size #00 plain sheet metal through #6 rolled rim grommets and spur washers (3/4″ hole) in a single stroke, and a set-only capacity (in prepunched material) of #7 and #8 rolled rim grommets or curtain grommets. That broad range of settings makes the J-25 the right choice for commercial flags, awnings, marine canvas, banners, industrial tarpaulins, heavy webbing, and any medium-production manual-feed operation running approximately 2,500 pieces per week. Your operator will appreciate the J-25’s efficient, quiet operation, as well as its versatility across industrial fabrics, including 2-ply polyester and nylon flag fabric, canvas, vinyl, PVC, sailcloth & marine fabrics, leather, webbing, seatbelt material, and more. The J-25 is strong enough to set through multiple layers of nylon webbing and seatbelt material, yet portable enough to move between workstations as production demands.
With a setting capacity of 900 fasteners per hour, the J-25 dramatically outpaces hand-punching and hand-setting, improving productivity immediately. The J-25’s foot pedal actuation lets the operator position the material with two-handed precision, ensuring perfect placement of the setting every time in under one second. The J-25’s integrated stainless steel work plate regulates backspace and spacing between settings, making consistent setting placement effortless. A built-in finger guard protection mechanism prevents the machine from cycling when the setting dies are obstructed by the operator’s fingers or other external components, improving operator safety throughout the production run. Setting dies can be easily swapped out to accommodate different grommet sizes and material thicknesses, giving the J-25 unmatched versatility for any operation that needs a wide setting range without committing to a fully automatic machine.
Details:
- Heavy-duty manual-feed pneumatic grommet machine.
- Cut-and-set capacity: size #00 plain sheet metal through #6 rolled rim grommets and spur washers (3/4″ hole) in a single stroke.
- Set-only capacity (in pre-punched material): #7 and #8 rolled rim grommets or curtain grommets.
- Pneumatic operation requires only standard 120 psi shop air; no electrical connection required.
- Punches a hole in the material and sets the grommet and washer in a single action, creating a secure attachment in under one second.
- Strong enough to set through multiple layers of nylon webbing and seatbelt material, yet portable enough to move between workstations as production demands.
- Easily adjusts to accommodate materials of different thicknesses, including 2-ply polyester and nylon flag fabric, canvas, vinyl, PVC, sailcloth & marine fabrics, leather, webbing, seatbelt material, and many more.
- Setting dies can be easily swapped out for different grommet sizes with quick change tooling.
- Place and set grommets and washers with precision using the integrated stainless steel work plate, which regulates back space and the distance between settings.
- Hands-free foot pedal actuation allows the operator to position the material with two-handed precision.
- Built-in finger guard protection mechanism improves operator safety by preventing the machine from cycling when the dies are obstructed.
- Optional equipment includes a laser locating light, an LED work light, a mobile tabletop cart with casters, a large workplate with back and side gauges, and pedestal stands for sitting or standing operation.
