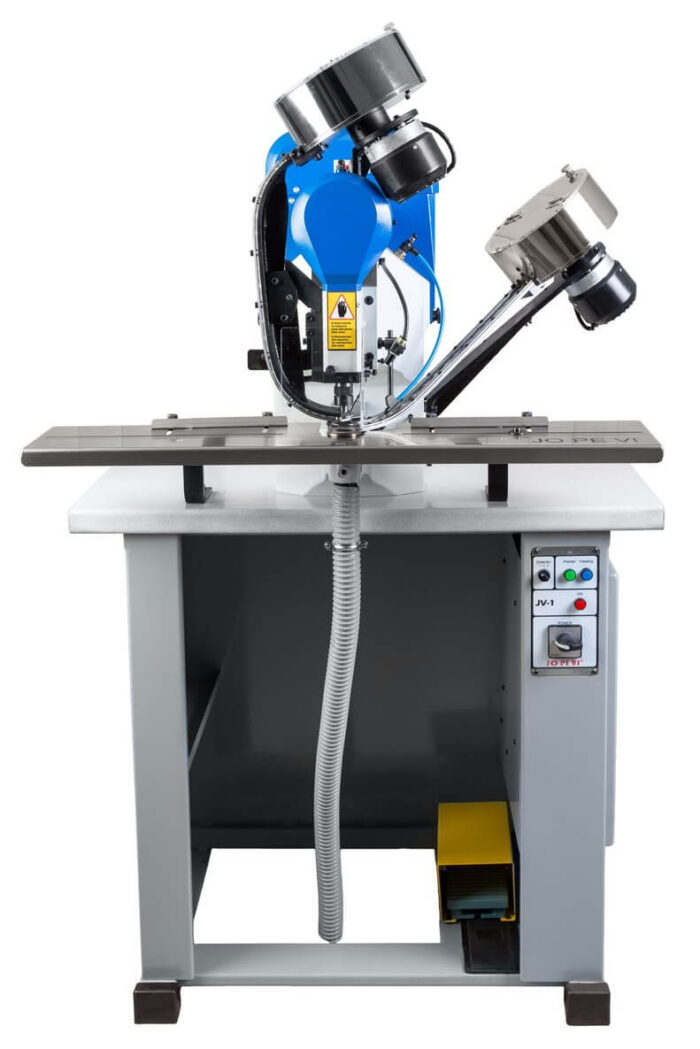

J-239 Jopevi Automatic Grommet Machine-Stimpson

The Jopevi J-239 is a dual-feed automatic machine that punches a hole in your material and sets the grommet and washer in a single action. This model can set Stimpson brass sheet metal grommets and neck or teeth washers of sizes #00 through #5, and rolled rim grommets with spur washers of sizes #0 through #5. Your operators will appreciate the efficient, quiet operation of the J-239, as well as its adjustability to handle industrial fabrics of many types, including vinyl, PVC, canvas, leather, sailcloth, webbing, and more. The J-239’s laser pointer and foot pedal actuation allows your operator to position the material with two-handed precision, allowing perfect placement of the setting every time, in under one second. The J-239’s integrated stainless steel worktable with built-in spacing gauges makes flawless settings a breeze and the washer detector will put an end to unintended washer-less settings that cost time and money. The J-239 can also be set up to simply punch holes in your material or set the grommet alone.

Details:

  • Fully automatic dual feed electric grommet machine.
  • Set Stimpson brass sheet metal grommets and neck/teeth washers, sizes #00 through #5, and rolled rim grommets and spur washers, sizes #0 through #5.
  • Electric operation, no compressed air power required.
  • Punches a hole in the material and sets the grommet and washer in a single action, creating a secure attachment in under one second.
  • Easily adjusts to accommodate materials of different thicknesses, including vinyl, PVC, canvas, leather, sailcloth & marine fabrics, webbing, and many more.
  • Place and set grommets and washers with precision using the laser light and spacing gauges.
  • Automatic washer detector mechanism prevents the J-239 from setting a grommet without the corresponding washer.
  • Improved operator safety with built-in acrylic shield and ring guard.
J-239 Specifications
Height:59″
Depth:27.5″
Width:35″
Weight:304 lbs.
Engine Power:HP/110V
Performance:3,600 Settings/Hour
