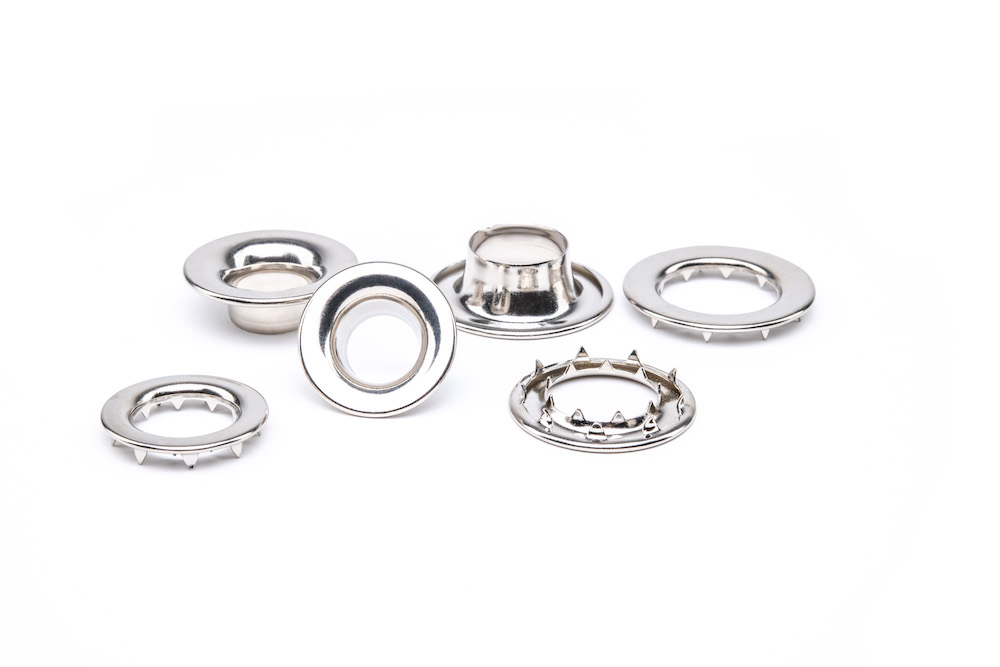

Stimpson EasySet rolled rim grommets and spur washers in stainless steel and dull black

Stimpson’s EasySet stainless steel rolled rim grommets with spur washers to our already robust line of marine fasteners. Due to their lighter gauge, EasySet grommets with spur washers coil with the ease of brass during the setting process. EasySet grommets and washers provide excellent hole reinforcement that marine professionals expect from Stimpson fasteners, while their stainless steel base metal offers enhanced corrosion resistance.

EasySet rolled rim grommets feature a stylish, smooth-rolled edge, while the circumference of the inside rim of the washers is lined with interlocking spurs that grasp the fabric or material, resulting in a rugged and unyielding setting. They are available in sizes #0-#4 for holes 9/32″ to 9/16″ in circumference. Rely on Stimpson EasySet rolled rim grommets with spur washers for marine, signs & banners, canvas, tarps, tents and medical applications.

Features & Benefits:

  • Stimpson’s EasySet stainless steel rolled rim grommets with spur washers coil with the ease of brass.
  • Manufactured from 304 stainless steel for enhanced corrosion resistance.
  • EasySet rolled rim grommets feature a stylish, smooth-rolled edge, and their matching washers, with interlocking spurs, grasp your material and provide a rugged, unyielding setting.
  • Available in sizes #0-#4 for holes 9/32″ to 9/16″ in circumference.
    EasySet grommets and washers provide excellent hole reinforcement that marine professionals expect from Stimpson.

EasySet Rolled Rim Grommet Dimensions

GrommetHole SizeFlg. Dia.L.U.F.MT
E0RRGSS9/32”.670″.175″.010″
E1RRGSS13/32”.790″.205″.010″
E2RRGSS7/16”.890″.255″.010″
E3RRGSS15/32.970″.255″.011″
E4RRGSS9/16”1.120″.320″.011″

L.U.F = Length Under Flange Flg. Dia. = Flange Diameter I.D. = Inside Diameter O.D. = Outside Diameter MT = Metal Thickness

Spur Washer Dimensions

WasherGrommetI.D.O.D.MT
E0RRSWSSE0RRGSS.345″.645″.010″
E1RRSWSSE1RRGSS.455″.790″.010″
E2RRSWSSE2RRGSS.512″.890″.010″
E3RRSWSSE3RRGSS.537″.970″.011″
E34RSWSSE4RRGSS.645″1.120″.011″

L.U.F = Length Under Flange Flg. Dia. = Flange Diameter I.D. = Inside Diameter O.D. = Outside Diameter MT = Metal Thickness

Stimpson Grommets & Washers

Stimpson is the leading U.S.-based manufacturer and supplier of grommets & washers in either brass or stainless steel and in 6 different styles with hole sizes ranging from 3/16” to 1 ½”.
